Description

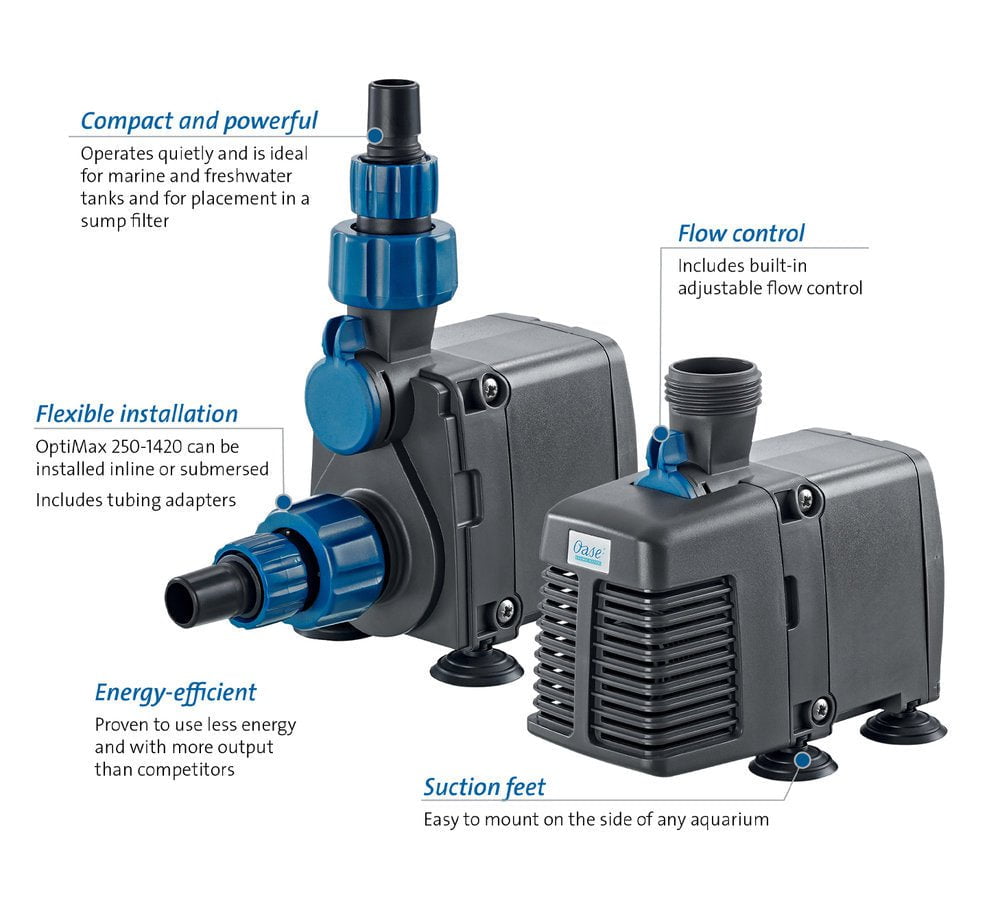

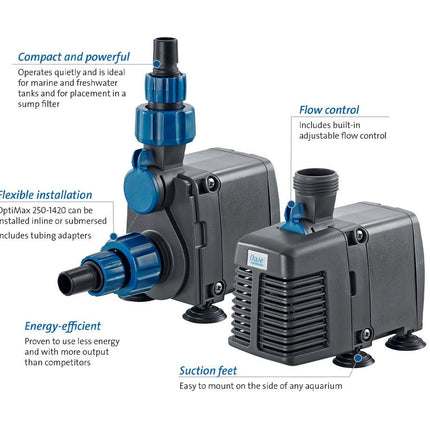

Characteristic
- POWERFUL & ECONOMICAL: Excellent energy balance: low power consumption with high pump output
- INSTALLATION SITE: For installation under water, within the aquarium or in dry conditions

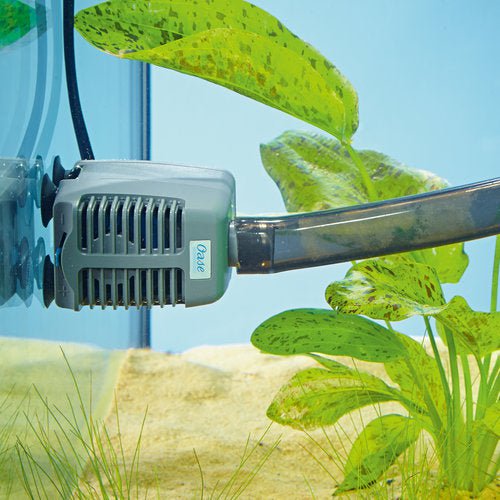

- EASY TO MOUNT: Two practical suction holders for mounting at the desired location
- MOVEMENT: Perfect for efficient water circulation or for the operation of an aquarium filter
- ADJUSTABLE: The water flow rate can be easily and continuously adjusted
- RELIABLE: Extremely powerful and reliable in continuous use

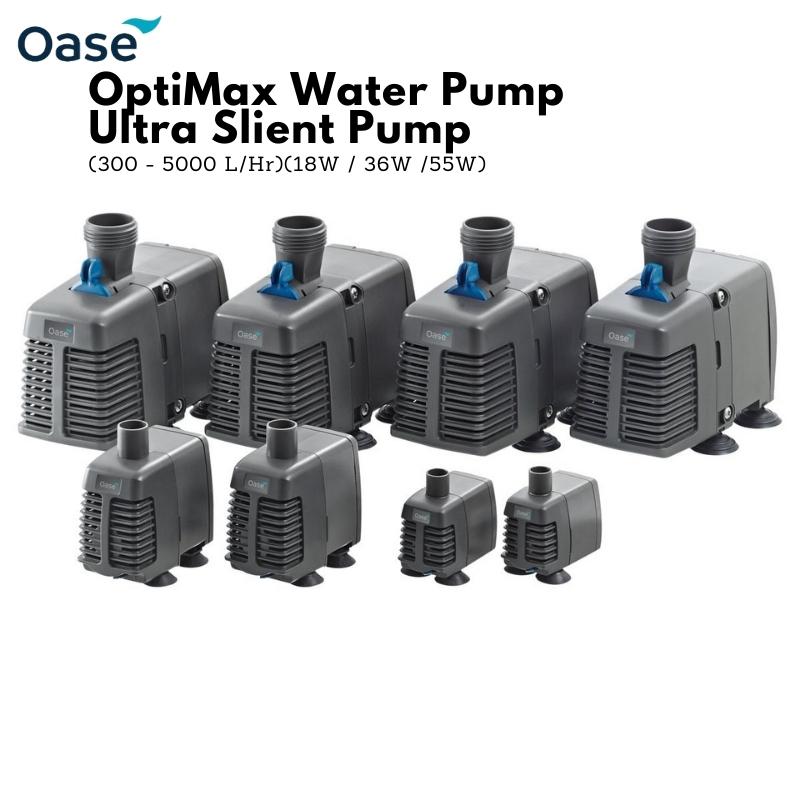

Technical Specifications,
Optimax 300
Dimensions (L x W x H) (mm) 55 x 42 x 60
Rated voltage 230 V / 50 Hz
Power consumption (w) 5
Power cable length (m) 1.50
Net weight (kg) 0.18
Guarantee (Years) 3
Max. flow rate (l/hr) 300
Max. head height (m) 0.60
Pressure-side connection (mm) 13
Suitable for freshwater Yes
Suitable for saltwater Yes
Setup type Suitable for submersible use only
Optimax 500
Dimensions (L x W x H) (mm) 55 x 42 x 60
Rated voltage 230 V / 50 Hz
Power consumption (w) 5
Power cable length (m) 1.50
Net weight (kg) 0.18
Guarantee (Years) 3
Max. flow rate (l/hr) 500
Max. head height (m) 0.80
Pressure-side connection (mm) 13
Suitable for freshwater Yes
Suitable for saltwater Yes
Setup type Suitable for submersible use only
Optimax 800
Dimensions (L x W x H) (mm) 77 x 52 x 80
Rated voltage 230 V / 50 Hz
Power consumption (w) 7
Power cable length (m) 1.50
Net weight (kg) 0.32
Guarantee (Years) 3
Max. flow rate (l/hr) 800
Max. head height (m) 1.0
Pressure-side connection (mm) 17
Suction Side Connection 19
Suitable for freshwater Yes
Suitable for saltwater Yes
Setup type Can be set up underwater & dry installed
Optimax 1000
Dimensions (L x W x H) (mm) 77 x 52 x 80
Rated voltage 230 V / 50 Hz
Power consumption (w) 12
Power cable length (m) 1.50
Net weight (kg) 0.37
Guarantee (Years) 3
Max. flow rate (l/hr) 1000
Max. head height (m) 1.30
Pressure-side connection (mm) 17
Suction Side Connection 19
Suitable for freshwater Yes
Suitable for saltwater Yes
Setup type Can be set up underwater & dry installed
Optimax 2000
Dimensions (L x W x H) (mm) 140 x 95 x 136
Rated voltage 230 V / 50 Hz
Power consumption (w) 32
Power cable length (m) 1.50
Net weight (kg) 1.01
Guarantee (Years) 3
Max. flow rate (l/hr) 2000
Max. head height (m) 2.40
Pressure-side connection (mm) 17
Suction Side Connection 17
Suitable for freshwater Yes
Suitable for saltwater Yes
Setup type Can be set up underwater & dry installed
Optimax 3000
Dimensions (L x W x H) (mm) 140 x 95 x 136
Rated voltage 230 V / 50 Hz
Power consumption (w) 55
Power cable length (m) 1.50
Net weight (kg) 1.23
Guarantee (Years) 3
Max. flow rate (l/hr) 2800
Max. head height (m) 3.00
Pressure-side connection (mm) 17
Suction Side Connection 17
Suitable for freshwater Yes
Suitable for saltwater Yes
Setup type Can be set up underwater & dry installed
Optimax 4000
Dimensions (L x W x H) (mm) 140 x 95 x 136
Rated voltage 230 V / 50 Hz
Power consumption (w) 80
Power cable length (m) 1.50
Net weight (kg) 1.22
Guarantee (Years) 3
Max. flow rate (l/hr) 4400
Max. head height (m) 3.00
Pressure-side connection (mm) 17
Suction Side Connection 17
Suitable for freshwater Yes
Suitable for saltwater Yes
Setup type Can be set up underwater & dry installed
Optimax 5000
Dimensions (L x W x H) (mm) 140 x 95 x 136
Rated voltage 230 V / 50 Hz
Power consumption (w) 82
Power cable length (m) 1.50
Net weight (kg) 1.22
Guarantee (Years) 3
Max. flow rate (l/hr) 5000
Max. head height (m) 3.00
Pressure-side connection (mm) 17
Suction Side Connection 17
Suitable for freshwater Yes
Suitable for saltwater Yes
Setup type Can be set up underwater & dry installed
